Cables de cobre interiores y exteriores Accesorios de latón Conectarse con tubería para agua Aceite aire
Persona de Contacto : Ina Chen
Número de teléfono : 0086-15168536055
WhatsApp : +8615168536055
| Lugar de origen: | China. | Nombre de la marca: | NBSANMINSE |
|---|---|---|---|
| Número de modelo: | 308-06 308-08 |
|
Información detallada |
|||
| Código: | 308-06 308-08 | El hilo interno: | M20x1.5 |
|---|---|---|---|
| Tubos de conexión: | F6 F8 F10 | Presión nominal: | 0.6Mpa |
| Prueba de resistencia Presión: | 1.6MPa | El material: | de bronce |
Descripción de producto

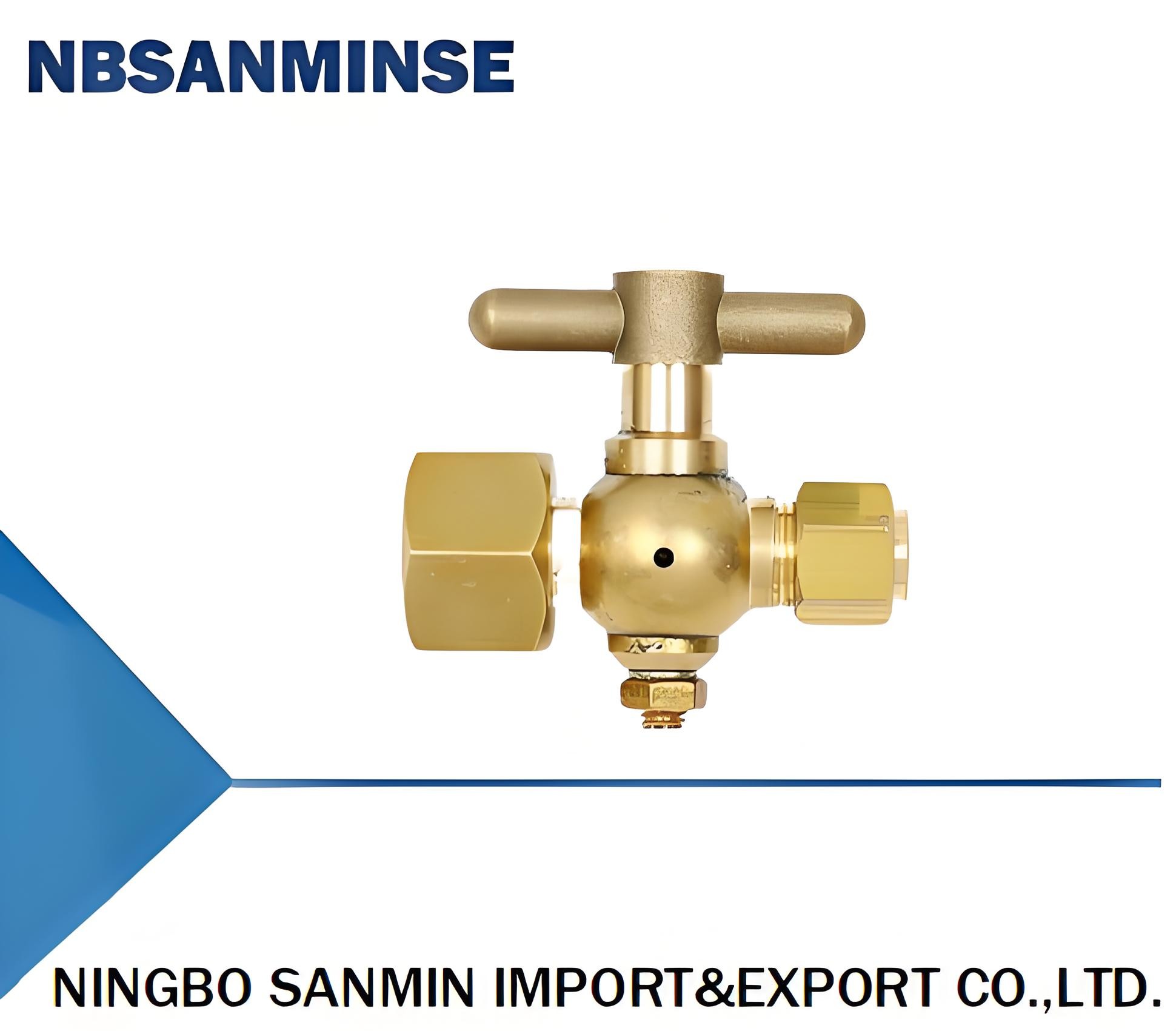

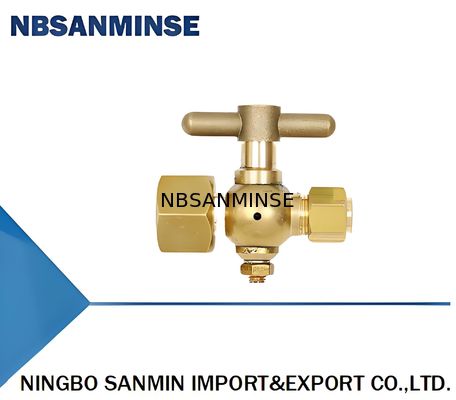

308-10 three-way plug valve is mainly used for connecting pressure gauges. The plug valve is a rotary valve with a closing element or plunger shape. It is a type of valve that can be opened or closed by rotating 90 degrees to make the channel port on the valve plug the same or separate from the channel port on the valve body. The nominal pressure 0.6MPA,strength testing is 1.6MPa.
Our company's product, the three-way plug valve, has superior and precise polishing technology, precise dimensions, easy welding between pipe fittings, and quick assembly; The wall thickness between the pipe ends is consistent, ensuring smooth product flow and avoiding residue. Welcome to come and purchase.
Code internal thread connecting pipe
308-06 M20*1.5 Ф6
308-08 M20*1.5 Ф8
308-10 M20*1.5 Ф10
| code | internal thread | Connecting pipes |
| 308-06 | M20x1.5 | Ф6 |
| 308-08 | M20x1.5 | Ф8 |
| 308-10 | M20x1.5 | Ф10 |
| Nominal pressure | 0.6Mpa | |
| strength test pressure | 1.6Mpa | |
